This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

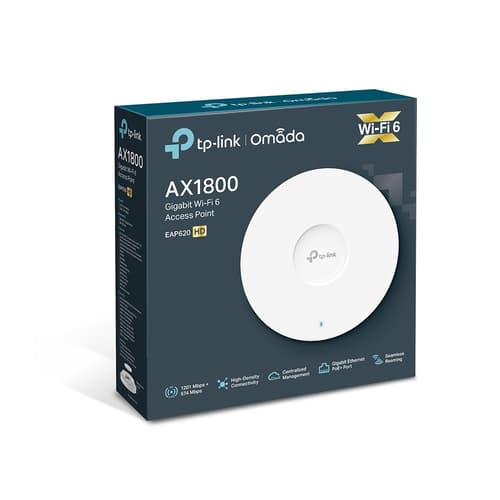

TP-Link EAP620 HD V3.20
Radio access point
Wi-Fi 6
2.4 GHz, 5 GHz
wall / ceiling mountable
Weight: 0.84 KG
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
Similar Products
Overview
The TP-Link EAP620 HD is designed to optimize wireless connectivity in both small and large spaces. It supports up to 16 configured SSIDs, allowing for customizable networking options. With a dual-band capability of 2.4 GHz and 5 GHz, this access point ensures robust performance across multiple devices, minimizing interference. Built for a range of environments with an operating temperature from 0°C to 40°C and humidity tolerance from 10% to 90%, the design can be mounted on walls or ceilings. Equipped with advanced features such as MU-MIMO technology and beamforming, the EAP620 HD enhances data flow, providing seamless roaming for users. Its array of encryption algorithms, including WPA3 and WPA2, ensures secure and efficient communication, making it suitable for both business and personal use.
Specifications
Features
- MIMO type
- Multi User MIMO
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- No
- Maximum data transfer rate
- 1201 Mbit/s Mbit/s
- Maximum data transfer rate (2.4 GHz)
- 574 Mbit/s Mbit/s
- Maximum data transfer rate (5 GHz)
- 1201 Mbit/s Mbit/s
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Frequency band
- 2.4 - 5 GHz GHz
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
- Cabling technology
- 10/100/1000Base-T(X)
- Number of users
- 1020 user(s) user(s)
- Automatic channel selection
- Yes
- Automatic channel scanning
- Yes
- MIMO
- Yes
- Spread spectrum method
- OFDMA
- Fit AP mode features
- Mesh networking
- VLAN support
- Yes
- Rate limiting
- Yes
- Flow control support
- Yes
- Band steering
- Yes
- Airtime Fairness (ATF)
- Yes
- Quality of Service (QoS) support
- Yes
- BeamForming
- Yes
- Transmitting power (CE)
- 20/23 dBm dBm
- Transmitting power (FCC)
- 23 dBm dBm
Security
- Security algorithms
- SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
- MAC address filtering
- Yes
- Remote Authentication Dial-In User Service (RADIUS)
- Yes
- Access Control List (ACL)
- Yes
Management features
- Web-based management
- Yes
- Syslog
- Yes
- Firmware upgradeable
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 0
- DC-in jack
- Yes
Power
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- Active PoE, Passive PoE
- DC voltage range
- 12 V V
Design
- Placement
- Ceiling, Wall
- Product colour
- White
- Reset button
- Yes
- LED indicators
- Yes
Antenna
- Antenna type
- Internal
- Antenna direction type
- Omni-directional
Certificates
- Certification
- CE, FCC, RoHS
Weight & dimensions
- Width
- 160 mm mm
- Depth
- 160 mm mm
- Height
- 33 mm mm
Packaging data
- Package type
- Box
Packaging content
- Quantity per pack
- 1 pc(s) pc(s)
- Mounting kit
- Yes
- Quick start guide
- Yes
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90% %
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Storage relative humidity (H-H)
- 5 - 90% %
