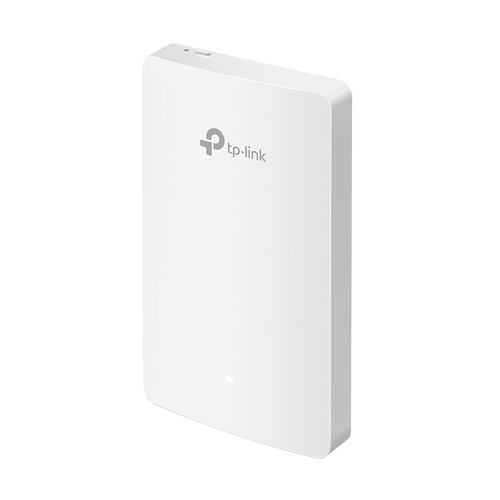

TP-Link Omada EAP235-Wall - radio access point - Wi-Fi 5
Radio access point
Wi-Fi 5
2.4 GHz, 5 GHz
wall mountable
Weight: 0.32 KG
- Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments
- Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment

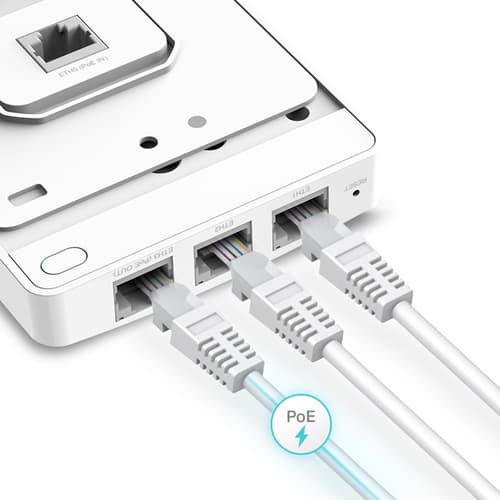

- Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device
- High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices
- Cloud management and Omada app supported for ultra-convenience and easy management
- Enterprise class Wi-Fi security helps to decrease network security threats
- Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology
Similar Products
Overview
An EAP in each room allows guests to enjoy their own private Wi-Fi network that's fast, delivering a strong signal, and providing corner to corner coverage.
Specifications
Features
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- No
- Maximum data transfer rate
- 1167 Mbit/s Mbit/s
- Maximum data transfer rate (2.4 GHz)
- 300 Mbit/s Mbit/s
- Maximum data transfer rate (5 GHz)
- 867 Mbit/s Mbit/s
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Frequency band
- 2.4 - 5 GHz GHz
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Cabling technology
- 10/100/1000Base-T(X)
- Automatic channel selection
- Yes
- Automatic channel scanning
- Yes
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME)
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Port-based VLAN, VLAN mapping
- Rate limiting
- Yes
- Wireless isolation
- Yes
- Band steering
- Yes
- Quality of Service (QoS) support
- Yes
- BeamForming
- Yes
- Transmitting power (CE)
- 20 - 23 dBm dBm
- Transmitting power (FCC)
- 21 dBm dBm
Security
- Security algorithms
- 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
- MAC address filtering
- Yes
- Service Set Identifier (SSID) features
- Multiple SSIDs
- Number of SSID supported
- 16
- Remote Authentication Dial-In User Service (RADIUS)
- Yes
- Access Control List (ACL)
- Yes
Protocols
- Universal Plug and Play (UPnP)
- Yes
Management features
- Web-based management
- Yes
- Syslog
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 4
- WAN connection
- Ethernet (RJ-45)
Power
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- Active PoE, Passive PoE
- Power consumption (typical)
- 24.4 W W
Design
- Placement
- Wall
- Product colour
- White
- Cable lock slot
- Yes
- Reset button
- Yes
- LED indicators
- LAN, Power, Status, WAN, WLAN
Antenna
- Antenna type
- Internal
- Antenna features
- Integrated antenna
- Antennas quantity
- 2
- Antenna gain level (max)
- 4 dBi dBi
Performance
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
- Width
- 143 mm mm
- Depth
- 86 mm mm
- Height
- 20 mm mm
Packaging data
- Package width
- 117 mm mm
- Package depth
- 184 mm mm
- Package height
- 33 mm mm
- Package weight
- 300 g g
- Package type
- Box
Packaging content
- Quantity per pack
- 1 pc(s) pc(s)
- Mounting kit
- Yes
- Quick start guide
- Yes
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90% %
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Storage relative humidity (H-H)
- 5 - 90% %
Logistics data
- Harmonized System (HS) code
- 85176990
Sustainability
- Sustainability compliance
- Yes
