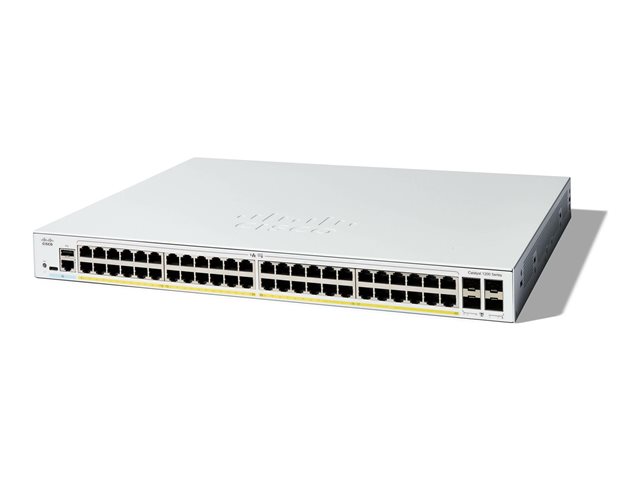

Cisco Catalyst 1200-48P-4G - switch - 48 ports - smart - rack-mountable
Switch
L3
smart
48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
rack-mountable
PoE+ (375 W)
Weight: 6.64 KG
- Easy configuration and management
- Reliability and performance
- Layer 3 static routing
- Network security
- Flexible and compact design
- Energy-efficient solution
- Power over Ethernet
Similar Products
Overview
The Cisco Catalyst 1200-48P-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security, and reliability with a comprehensive suite of network features you need for a solid small business network.
Main Specifications
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- STP, static IP routing, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2, Bounjour
- Remote Management Protocol
- CLI, Telnet, SSH, SSH-2, DHCP, ICMP, SNMP, RADIUS, Syslog, HTTP, HTTPS, SNMP 2c, SNMP 3, RMON, TFTP, SCP
- Features
- 1 fan, QoS, ACL support, eco-friendly button, EEE, PVST+, Link Aggregation, port grouping, LACP, LAG, VLAN support, Auto Surveillance VLAN, Guest VLAN, port-based VLAN, tag-based VLANs, VLAN management, Voice VLAN, VSDP, Zero-Touch Deployment, GARP, GVRP, IGMP snooping, IGMP querier, loopback detection, UDP, BOOTP support, STP loop guard, SCT, SSD, trustworthy systems, Port Security, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unknown Storm Control, DoS attack prevention, TCP/UDP proxy, DSCP based CoS, SP, WRR queuing, CoS, ToS, DiffServ support, EQS, ingress rate limiting, TCP congestion, SNTP support, TFTP support, DHCP client, DNS client, SNMP trap, remote firmware upgrade, Cable Diagnostics Function, DHCP server, port mirroring, SCP, VLAN mirroring, Telnet client, cable length detection, chip guard, boot integrity, LLDP, LLDP-MED, CDP, reset button, time-based port operation, IPv4 and IPv6 dual stack, Telnet server, DAD, path MTU discovery, WRR, Unicast Storm Control, DoS protection, HoL Blocking Prevention, DHCP relay, RPVST+, MSTP support, layer 3 routing
- Product Description
- Cisco Catalyst 1200-48P-4G - switch - 48 ports - smart - rack-mountable
- Compliant Standards
- IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at, IEEE 802.3af
- Power
- AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 44.5 cm x 35 cm x 4.4 cm
- Weight
- 5.43 kg
- Manufacturer Warranty
- Limited lifetime warranty
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 375 W
- Device Type
- Switch - 48 ports - L3 - smart
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- Performance
- Forwarding rate (64‑byte packets): 77.38 Mpps ¦ Switching capacity: 104 Gbps
- Capacity
- MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 3 MB
- MAC Address Table Size
- 8000 entries
Associated Documents
Product Features
SWITCH PORTS
48 ports 10/100/1000 + 4x 1GE SFP (total PoE power budget: 375W, PoE, PoE+)
SIMPLE
Intuitive Cisco Business mobile app, local web interface, and Cisco Business Dashboard allows you to set up, manage, and monitor the switch, with step-by-step instructions to install and configure your network in minutes-no IT expertise required
ENHANCED SECURITY
IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks.
ENERGY EFFICIENT
Optimizes power usage to lower operational cost. Compliant with IEEE 802. 3az Energy Efficient Ethernet. Fanless in select models.
PERFECT FOR SMALL BUSINESS
Requires no subscription or licenses to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
What's in the box
Switch, power cord, USB Type C cable, and mounting hardware
Specifications
General
- Flash Memory
- 512 MB
- Enclosure Type
- Rack-mountable
- Authentication Method
- RADIUS
- Subtype
- Gigabit Ethernet
- Encryption Algorithm
- SSL
- MAC Address Table Size
- 8000 entries
- Jumbo Frame Support
- 9000 bytes
- Device Type
- Switch - 48 ports - L3 - smart
- RAM
- 1 GB DDR4 SDRAM
- Processor
- X ARM: 1.4 GHz
- Capacity
- MSTP instances: 8, PVST+ instances: 126, RPVST+ instances: 126, Link aggregation groups: 4, Link aggregation ports: 8, Active VLANs: 255, IGMP multicast groups: 255, IPv4 routes (static): 32, IPv4 interfaces: 16, ACL rules: 512, Priority queues: 8, Packet buffer size: 3 MB
- Performance
- Forwarding rate (64‑byte packets): 77.38 Mpps, Switching capacity: 104 Gbps
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- Routing Protocol
- STP, static IP routing, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2, Bounjour
- Compliant Standards
- IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
- Status Indicators
- System, link/activity/speed, PoE
- Remote Management Protocol
- CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON, RADIUS
- Features
- 1 fan, QoS, ACL support, eco-friendly button, EEE, PVST+, Link Aggregation, port grouping, LACP, LAG, VLAN support, Auto Surveillance VLAN, Guest VLAN, port-based VLAN, tag-based VLANs, VLAN management, Voice VLAN, VSDP, Zero-Touch Deployment, GARP, GVRP, IGMP snooping, IGMP querier, loopback detection, UDP, BOOTP support, STP loop guard, SCT, SSD, trustworthy systems, Port Security, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unknown Storm Control, DoS attack prevention, TCP/UDP proxy, DSCP based CoS, SP, WRR queuing, CoS, ToS, DiffServ support, EQS, ingress rate limiting, TCP congestion, SNTP support, TFTP support, DHCP client, DNS client, SNMP trap, remote firmware upgrade, Cable Diagnostics Function, DHCP server, port mirroring, SCP, VLAN mirroring, Telnet client, cable length detection, chip guard, boot integrity, LLDP, LLDP-MED, CDP, reset button, time-based port operation, IPv4 and IPv6 dual stack, Telnet server, DAD, path MTU discovery, WRR, Unicast Storm Control, DoS protection, HoL Blocking Prevention, DHCP relay, RPVST+, MSTP support, layer 3 routing
- PoE Budget
- 375 W
- Power Over Ethernet (PoE)
- PoE+
Connections & Expansion
- Interfaces
- 48 x 10/100/1000 Base-T (PoE+) RJ-45, 4 x 10GBase-X SFP, 1 x console RJ-45, 1 x USB-C console
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime - response time: next business day, Technical support - consulting - 1 year
Miscellaneous
- MTBF
- 856,329 hours
- Included Accessories
- Pointer card, mounting kit
- Compliant Standards
- Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100-240 V (50/60 Hz)
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 50 °C
- Max Storage Temperature
- 70 °C
- Min Storage Temperature
- -25 °C
- Humidity Range Operating
- 10 - 90% RH (non-condensing)
- Humidity Range Storage
- 10 - 90% RH (non-condensing)
Weight & dimensions
- Depth
- 35 cm
- Width
- 44.5 cm
- Height
- 4.4 cm
- Weight
- 5.43 kg
