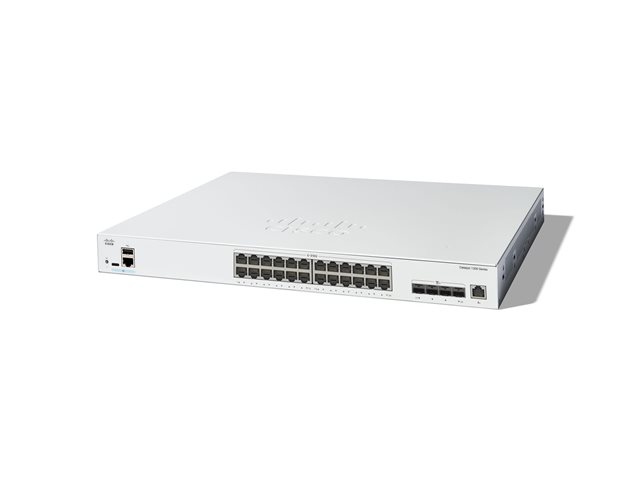

Cisco Catalyst 1300-24XT - switch - 24 ports - smart - rack-mountable
Switch
L3
smart
24 x 10 Gigabit Ethernet + 4 x combo 10 Gigabit SFP+/RJ-45
rack-mountable
Weight: 5.92 KG
- 24 10 Gigabit Ethernet ports for high-speed network connections
- 4 combo 10 Gigabit SFP+/RJ-45 ports for flexible uplink options
- Advanced security with RADIUS, TACACS+, and ACL support
- High forwarding rate of 357.12 Mpps and 480 Gbps switching capacity
- Energy-efficient design with ECO-friendly features and fanless operation
Similar Products
Overview
The Cisco Catalyst 1300-24XT switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features, and PoE+ support.
Main Specifications
- Device Type
- Switch - 24 ports - L3 - smart
- Enclosure Type
- Rack-mountable
- Subtype
- 10 Gigabit Ethernet
- Ports
- 24 x 10 Gigabit Ethernet + 4 x combo 10 Gigabit SFP+/RJ-45
- Performance
- Forwarding rate (64‑byte packets): 357.12 Mpps ¦ Switching capacity: 480 Gbps
- Capacity
- MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB
- MAC Address Table Size
- 16000 entries
- Jumbo Frame Support
- 9000 bytes
- Routing Protocol
- STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2
- Remote Management Protocol
- CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON, RADIUS
- Features
- Fanless, VLAN support, STP support, CLI management, ATP, FHS, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, eco-friendly button, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunnelling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimisation, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, Cisco NG PnP Protocol, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button
- Product Description
- Cisco Catalyst 1300-24XT - switch - 24 ports - smart - rack-mountable
- Compliant Standards
- IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
- Power
- AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 44.5 cm x 24 cm x 4.4 cm
- Weight
- 2.78 kg
- Manufacturer Warranty
- Limited lifetime warranty
Associated Documents
Product Features
SWITCH PORTS
20 ports 10G Copper + 4x 10GE Copper/SFP+ combo ports + 1x GE Management Port
SIMPLE
Intuitive Cisco Business mobile app, local web interface, and Cisco Business Dashboard allows you to set up, manage, and monitor the switch, with step-by-step instructions to install and configure your network in minutes-no IT expertise required
ENHANCED SECURITY
IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks.
ENERGY EFFICIENT
Optimizes power usage to lower operational cost. Compliant with IEEE 802. 3az Energy Efficient Ethernet. Fanless in select models.
PERFECT FOR SMALL BUSINESS
Requires no subscription or licenses to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
What's in the box
Switch, power cord, USB Type C cable, and mounting hardware
Specifications
General
- Flash Memory
- 512 MB
- Enclosure Type
- Rack-mountable
- Authentication Method
- RADIUS, TACACS+
- Subtype
- 10 Gigabit Ethernet
- Encryption Algorithm
- SSL, MD5
- MAC Address Table Size
- 16000 entries
- Jumbo Frame Support
- 9000 bytes
- Device Type
- Switch - 24 ports - L3 - smart
- RAM
- 1 GB DDR4 SDRAM
- Processor
- X ARM: 1.4 GHz
- Capacity
- MSTP instances: 8, RPVST+ instances: 126, Link aggregation groups: 8, Link aggregation ports: 8, VLAN IDs: 4093, IGMP multicast groups: 2000, IPv4 routes (static): up to 990, IPv4 interfaces: 128, ACL rules: 1024, Priority queues: 8, Packet buffer size: 1.5 MB
- Performance
- Forwarding rate (64‑byte packets): 357.12 Mpps, Switching capacity: 480 Gbps
- Ports
- 24 x 10 Gigabit Ethernet + 4 x combo 10 Gigabit SFP+/RJ-45
- Routing Protocol
- STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2
- Compliant Standards
- IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
- Status Indicators
- System, link/activity/speed, PoE
- Remote Management Protocol
- CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON, RADIUS
- Features
- Fanless, VLAN support, STP support, CLI management, ATP, FHS, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, eco-friendly button, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunnelling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimisation, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, Cisco NG PnP Protocol, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button
Connections & Expansion
- Interfaces
- 24 x 10GBase-T RJ-45, 4 x 10GBase-T/10GBase-X RJ-45/SFP+, 1 x console RJ-45, 1 x USB-C console, 1 x USB, 1 x RJ-45
Manufacturer Warranty
- Service & Support
- Limited warranty - return to factory - lifetime, Technical support - 1 year
Miscellaneous
- MTBF
- 2,165,105 hours
- Included Accessories
- Pointer card, mounting kit
- Compliant Standards
- Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE
Power
- Power Consumption Stand by
- 37.8 Watt
- Power Device
- Internal power supply
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Power Consumption Operational
- 78.6 Watt
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 50 °C
- Max Storage Temperature
- 70 °C
- Min Storage Temperature
- -25 °C
- Humidity Range Operating
- 10 - 90% RH (non-condensing)
- Humidity Range Storage
- 10 - 90% RH (non-condensing)
Weight & dimensions
- Depth
- 24 cm
- Width
- 44.5 cm
- Height
- 4.4 cm
- Weight
- 2.78 kg
