TP-Link JetStream TL-SG2218P V1.60 - Switch - smart - 16 x 10/100/1000 (PoE+) + 2 x SFP - rack-mountable - PoE+ (150 W)

Manuf P/N: SG2218P

TP-Link JetStream TL-SG2218P V1.60 - Switch - smart - 16 x 10/100/1000 (PoE+) + 2 x SFP - rack-mountable - PoE+ (150 W)
  • 150 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Durable metal casing and rackmountable design
  • 16× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP Slots

Similar Products

Compare All

TP-Link Omada 18-Port Gigabit Smart Switch with 16-Port PoE+, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
150 W W

Operational conditions

Operating relative humidity (H-H)
10 - 90% %
Heat dissipation
619.06 BTU/h BTU/h
Operating temperature (T-T)
0 - 50 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Storage relative humidity (H-H)
5 - 90% %

Weight & dimensions

Width
440 mm mm
Depth
180 mm mm
Height
44 mm mm

Ports & interfaces

Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports quantity
16
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0

Network

IP routing
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
VLAN support
Yes
10G support
No
Auto-negotiation
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Policy-based routing
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s Mbit/s
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes

Security

DHCP features
DHCP client, DHCP relay, DHCP snooping
Access Control List (ACL)
Yes
Static port security
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication, Port-based authentication
MAC address filtering
Yes
SSH/SSL support
Yes

Management features

Configuring Location Settings (CLI)
Yes
Switch type
Managed
Switch layer
L2/L2+
Cloud-managed
Yes
System event log
Yes
MIB support
MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9)
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes

Design

Form factor
1U
LED indicators
Yes
Rack mounting
Yes
Product colour
Black

Power

Power source
DC/PoE
Power supply included
Yes
Power consumption (max)
181.4 W W
AC input frequency
50/60 Hz Hz
AC input voltage
100 - 240 V V

Packaging content

Cables included
LAN (RJ-45)
User guide
Yes

Multicast features

Multicast features
Multicast forwarding
Multicast support
Yes

Data transmission

MAC address table
8000 entries entries
Switching capacity
26.78 Gbit/s Gbit/s
Forwarding rate
26.78 Mpps Mpps
Jumbo frames support
Yes
Jumbo frames
9
Packet buffer memory
4.1 MB MB

Packaging data

Package type
Box

Certificates

Certification
CE, FCC, RoHS

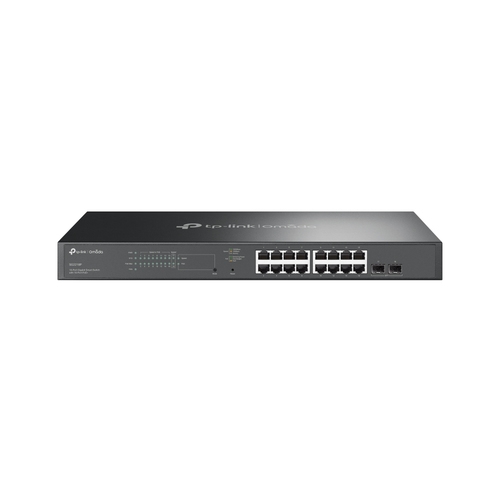

TP-Link JetStream TL-SG2218P V1.60 - Switch - smart - 16 x 10/100/1000 (PoE+) + 2 x SFP - rack-mountable - PoE+ (150 W) — image 1
