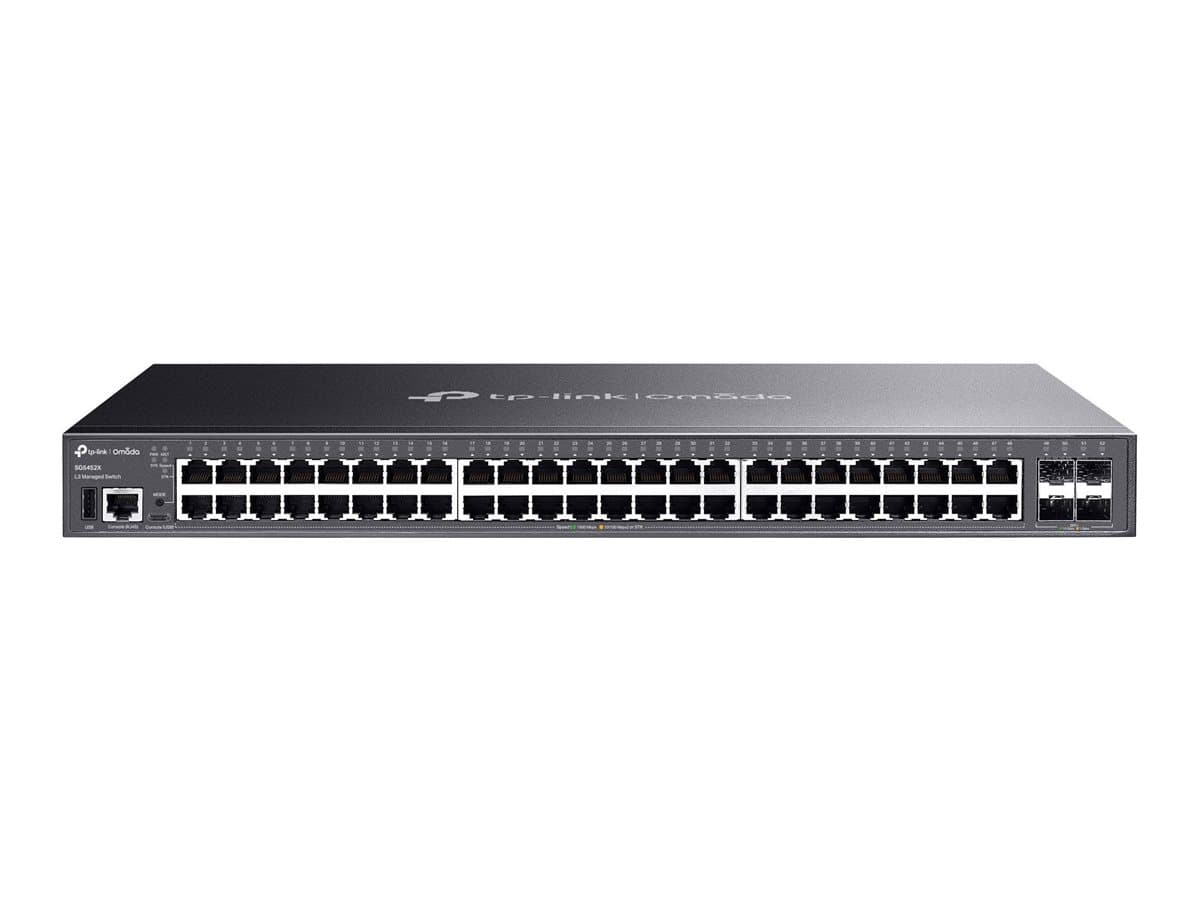

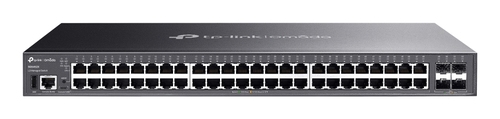

TP-Link Omada SG5452X V1 - Switch - L3 Lite - Managed - 48 x 10/100/1000 + 4 x 10Gb Ethernet SFP+ - rack-mountable
Switch
L3 Lite
Managed
48 x 10/100/1000 + 4 x 10Gb Ethernet SFP+
rack-mountable
Weight: 4.05 KG
- 48× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 176 Gbps switching capacity per unit
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Standalone management via web, CLI, SNMP, and RMON
- Centralized cloud management via the Omada SDN controller
Similar Products
TP-Link TL-SG105PE - Switch - Managed - 5 x 10/100/1000 (4 PoE+) - desktop - PoE+ (65 W)
TP-Link TL-SG1008MP - Switch - unmanaged - 8 x 10/100/1000 (PoE+) - desktop, rack-mountable - PoE+ (126 W)
TP-Link TL-SL1218MP - Switch - unmanaged - 16 x 10/100 (PoE+) + 2 x 10/100/1000 + 2 x combo Gigabit SFP - rack-mountable (192 W)
TP-Link Omada ES205GP V1 - Switch - Managed - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 - desktop, wall-mountable - PoE+ (65 W)
Overview
The TP-Link Omada SG5452X V1 meets advanced networking demands with its features and capabilities. This switch offers a switching capacity of 40 Gbps and a stacking bandwidth of 176 Gbps, suitable for high-traffic environments. With 48 ports that support 10/100/1000 base connections, it provides connectivity options for numerous devices, while its four additional 10Gb Ethernet SFP+ ports enable flexibility in network design and performance enhancement. Robust security features include support for Secure Shell (SSH) and various authentication methods such as RADIUS and EAP styles. With capabilities such as port mirroring, DHCP snooping, and Dynamic ARP Inspection (DAI), the SG5452X V1 ensures reliable security against potential threats. It operates quietly with its fanless design and supports energy-saving features, making it an intelligent choice for business networking solutions.
Main Specifications
- Product Description
- TP-Link Omada SG5452X V1 - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - L3 Lite - Managed - stackable
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 + 4 x 10Gb Ethernet SFP+
- Performance
- Switching capacity: 176 Gbps ¦ Packet forwarding rate: 130.94 Mpps ¦ Stacking bandwidth: 40 Gbps ¦ Forwarding bandwidth: 88 Gbps
- Capacity
- Buffer capacity (MB): 12 ¦ Priority queues: 8 ¦ IPv4 interfaces: 128 ¦ IPv6 interfaces: 128 ¦ Maximum host route table: 1024 ¦ IPv4 routes (static): 512 ¦ IPv6 routes (static): 128 ¦ RIP routes: 1796 ¦ OSPFv2 routes: 1796 ¦ OSPFv3 routes: 450 ¦ Static ARP entries: 512 ¦ Dynamic ARP: 3600 ¦ DHCP pool: 64 ¦ Binding entries: 1000 ¦ Maximum L2 multicast table: 2000 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 60 ¦ VLAN VPN (QinQ) entries: 256 ¦ IP MAC port binding entries: 1024 ¦ IPv6 MAC port binding entries: 1024 ¦ MAC addresses per port: 64
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- Static IP routing, RIP-1, RIP-2, OSPFv2, OSPFv3, L2PT, MLD, IGMP, MLDv2, MSTP, PPPoE, RIPng, RSTP, STP
- Remote Management Protocol
- DHCP, HTTP, HTTPS, CLI, SNMP 1, SNMP 2c, SNMP 3, BOOTP, RMON 1, MIB, Telnet, TFTP
- Features
- DHCP relay, DHCP server, ACL support, DoS attack prevention, Port Security, ERPS, SDN, DAI, MAB, ZTP, metal housing, fanless, bandwidth control, port priority, QoS, rate limit, Storm Control, Voice VLAN, flow control, IGMP snooping, IP multicast, Link Aggregation, loopback detection, MLD snooping, port mirroring, RSPAN, STP support, fast leave, MVR, Multicast filtering function, DLDP support, DDM, sFlow, GVRP, port isolation, DHCP snooping, DHCPv6 snooping, AAA, Broadcast Storm Control, Guest VLAN, Multicast Storm Control, Unknown Storm Control, LLDP-MED, EEE, store and forward, 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge)
- Compliant Standards
- IEEE 802.1x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x
- Power
- AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 22 cm x 4.4 cm
- What's in the box
- TP-Link Omada SG5452X V1, Rubber feet, mounting brackets, 8 screws, Console cable
Associated Documents
Product Features
Efficient Design
The TP-Link Omada SG5452X V1 features a fanless design that minimizes noise, making it ideal for office environments while maintaining performance.
Robust Security
With advanced security protocols such as Secure Shell (SSH) and authentication methods like RADIUS and various EAP types, this switch detects and prevents unauthorized access effectively.
Extensive Connectivity
Equipped with 48 ports supporting 10/100/1000 base connections and additional 10Gb Ethernet SFP+ ports, the switch allows versatile device connectivity to support modern network architectures.
High Performance
With a switching capacity of 40 Gbps and stacking bandwidth of 176 Gbps, the SG5452X V1 handles heavy data traffic efficiently, ensuring optimal network performance.
Advanced Networking Capabilities
With features such as port mirroring, DHCP snooping, and Dynamic ARP Inspection (DAI), the switch enhances network diagnostics and security management.
Specifications
Weight & dimensions
- Height
- 44 mm mm
- Width
- 440 mm mm
- Depth
- 220 mm mm
Packaging content
- Cables included
- AC
- Quick start guide
- Yes
- Rack mount kit
- Yes
Security
- SSH/SSL support
- Yes
- Access Control List (ACL)
- Yes
- DHCP features
- DHCP relay, DHCP server
- MAC address filtering
- Yes
- IGMP snooping
- Yes
- Security algorithms
- SNMP, SNMPv2, SNMPv3
- IP-MAC-Port binding
- Yes
- Password protection
- Yes
- Static port security
- Yes
Performance
- Mean time between failures (MTBF)
- 211.644 h h
- Physical stacking (units)
- 4
- Telnet
- Yes
- Fanless
- Yes
- Internal memory
- 2000 MB MB
- Built-in processor
- Yes
- Processor frequency
- 1200 MHz MHz
- Memory type
- DRAM
- Processor manufacturer
- ARM
- Flash memory
- 512 MB MB
- Firmware upgradeable
- Yes
Power
- Power source
- AC
- AC input voltage
- 100 - 240 V V
- Power consumption (max)
- 34.1 W W
- Power supply included
- Yes
- AC input frequency
- 50/60 Hz Hz
- Surge protection voltage
- 6 kV kV
- Surge protection
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 90% %
- Storage relative humidity (H-H)
- 5 - 90% %
- Heat dissipation
- 116.42 BTU/h BTU/h
- Operating temperature (T-T)
- -5 - 45 °C °C
Management features
- Cloud-managed
- Yes
- Switch layer
- L3
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- Switch type
- Managed
- ARP inspection
- Yes
Network
- Broadcast storm control
- Yes
- 10G support
- Yes
- Link aggregation
- Yes
- VLAN support
- Yes
- Number of VLANs
- 4000
- Networking standards
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Virtual LAN features
- MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
- Port mirroring
- Yes
Ports & interfaces
- SFP+ module slots quantity
- 4
- Installed SFP+ modules quantity
- 0
- Gigabit Ethernet (copper) ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- USB Type-C ports quantity
- 1
- Installed SFP modules quantity
- 0
- Console port
- RJ-45
- Basic switching RJ-45 Ethernet ports quantity
- 48
- USB 2.0 ports quantity
- 1
Data transmission
- Switching capacity
- 176 Gbit/s Gbit/s
- MAC address table
- 16000 entries entries
- Forwarding rate
- 130.94 Mpps Mpps
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Packet buffer memory
- 12 MB MB
Design
- Stackable
- Yes
- Rack mounting
- Yes
- LED indicators
- Yes
- Product colour
- Black
Multicast features
- Multicast support
- Yes
Other features
- Bandwidth
- 88 Gbit/s Gbit/s
- Management level
- 4
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
