TP-Link TL-SG1005P-PD V1 - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++) - desktop, wall-mountable - PoE++ (66 W)
Manuf P/N: TL-SG1005P-PD
APAXON#: 9762004
EAN: 4895252501124
TP-Link TL-SG1005P-PD V1 - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++) - desktop, wall-mountable - PoE++ (66 W)
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- Cat3, Cat4, Cat5, Cat5e, Cat6 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s
- PoE Power over Ethernet (PoE)
Stock20
Price £68.63
Quantity
|
Similar Products
TP-Link TL-SG1005P-PD V1 - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++) - desktop, wall-mountable - PoE++ (66 W)
Your Choice
—
—
—
—
Stock20
£68.63
TP-Link JetStream TL-SG3428XF V1.6 - Switch - L2+ - Managed - 20 x Gigabit SFP + 4 x combo Gigabit SFP/RJ-45 + 4 x 10 Gigabit SFP+ (uplink) - rack-mountable
Better
—
—
—
—
Stock0
£650.55
TP-Link Omada SG5428X V1 - Switch - L3 Lite - Managed - 24 x 10/100/1000 + 4 x 10Gb Ethernet SFP+ - rack-mountable
Better
—
—
—
—
Stock0
£571.91
Product Summary
TP-Link TL-SG1005P-PD network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Extended Specification
Group 2944
Quality of Service (QoS) support
Yes
Group 763
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Group 1141
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Group 2484
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
Store-and-forward
Yes
Group 2482
IGMP snooping
Yes
Group 10881
Product colour
Black
LED indicators
Yes
Wall mountable
Yes
Number of fans
0 fan(s)
Group 10882
Fanless
Yes
Group 1142
Power source
PoE
Power supply included
No
Power consumption (max)
68.59 W
Group 9999
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
5
Total Power over Ethernet (PoE) budget
66 W
Group 1143
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
233.206 BTU/h
Group 1144
Width
158 mm
Depth
101 mm
Height
25 mm
Group 49104
User guide
Yes
Group 2483
Package type
Box
Group 41469
Certification
CE, FCC, RoHS
Similar Products
TP-Link TL-SG1005P-PD V1 - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++) - desktop, wall-mountable - PoE++ (66 W)
Your Choice
—
—
—
—
Stock20
£68.63

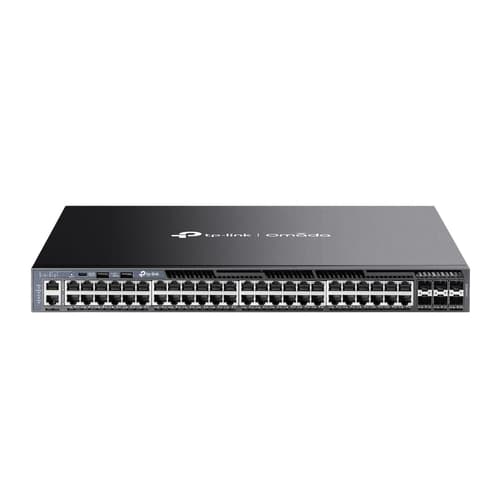

TP-Link Omada SG6654X V1 - Switch - L3 - Managed - 48 x 10/100/1000 + 6 x 10Gb Ethernet SFP+ - front to back airflow - rack-mountable
