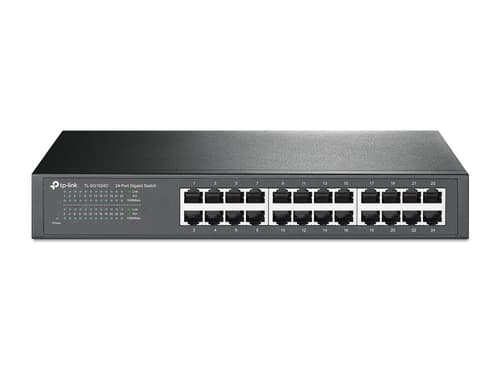

TP-Link TL-SG1024D 24 port Desktop/Rackmount Gigabit Switch
Thumbnail 0

TP-Link TL-SG1024D 24 port Desktop/Rackmount Gigabit Switch

Manuf P/N: TL-SG1024D
APAXON#: 2325170
EAN: 0797108636124
TP-Link TL-SG1024D 24 port Desktop/Rackmount Gigabit Switch
  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Cat3, Cat4, Cat5, Cat5e
  • MAC address table: 8000 entries Switching capacity: 48 Gbit/s
  • Rack mounting Stackable
  • Power supply included
UK Stock3
ConditionNew
Price £ 76.56
Price inc. VAT
£ 91.87
Quantity
|

Sales & Technical Enquiries

Product Summary

TP-Link TL-SG1024D network switch Unmanaged Gigabit Ethernet (10/100/1000) Grey

Extended Specification

Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
24
Power connector
DC-in jack
Network
Networking standards
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
No
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Data transmission
MAC address table
8000 entries
Switching capacity
48 Gbit/s
Forwarding rate
35.7 Mpps
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Protocols
Supported network protocols
CSMA/CD, TCP/IP
Design
Rack mounting
Yes
Stackable
Yes
Product colour
Grey
LED indicators
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
13.08 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
44.63 BTU/h
Weight & dimensions
Width
294 mm
Depth
180 mm
Height
44 mm
Packaging content
Cables included
AC
User guide
Yes
Rack mount kit
Yes
Packaging data
Package type
Box
Certificates
Certification
FCC, CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
