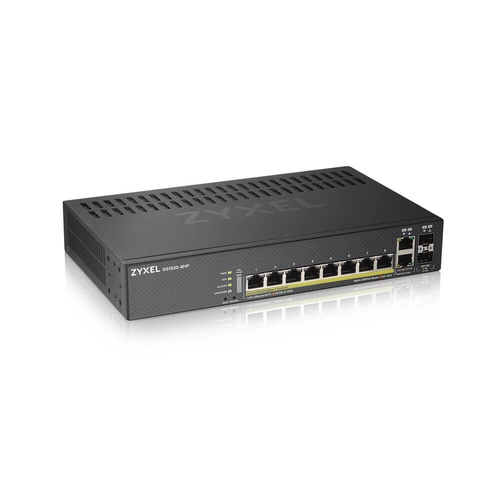

Zyxel GS1920-8HPv2
Zyxel GS1920-8HPv2
Switch
smart
8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
desktop, wall-mountable
PoE+ (130 W)
Weight: 2.70 KG
Switch
smart
8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
desktop, wall-mountable
PoE+ (130 W)
Weight: 2.70 KG
- Managed L2/L3/L4 Web-based management SNMP v1, v2c, v3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 16000 entries Switching capacity: 20 Gbit/s
- Access Control List (ACL)
- AC Power over Ethernet (PoE)
Similar Products
Overview
The GS1920 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations future proofing your network to ensure easy growth down the road.
Specifications
Data transmission
- Forwarding rate
- 15 Mpps
- Packet buffer memory
- 1.5 MB
- MAC address table
- 16000 entries entries
- Switching capacity
- 20 Gbit/s Gbit/s
- Forwarding rate
- 15 Mpps Mpps
- Packet buffer memory
- 1.5 MB MB
- MAC address table
- 16000 entries
- Switching capacity
- 20 Gbit/s
Security
- DHCP features
- DHCP client, DHCP relay, DHCP snooping
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- IGMP proxy
- Yes
- Security algorithms
- 802.1x RADIUS, SSL/TLS
- MAC address filtering
- Yes
- Static port security
- Yes
- SSH/SSL support
- Yes
- Loop protection
- Yes
- IP-MAC-Port binding
- Yes
- Password protection
- Yes
- Authentication type
- RADIUS, TACACS+
- Queue scheduling algorithms
- Strict Priority Queue (SPQ), WFQ, Weighted Round Robin (WRR)
Multicast features
- Multicast support
- Yes
Protocols
- Management protocols
- SNMP v1, v2c, v3
Design
- Product colour
- Black
- Reset button
- Yes
- LED indicators
- Yes
- Wall mountable
- Yes
- Number of fans
- 0 fan(s)
- Electromagnetic compatibility
- FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC
- Number of fans
- 0 fan(s) fan(s)
Performance
- Internal memory
- 256 MB
- Flash memory
- 32 MB
- Fanless
- Yes
- Mean time between failures (MTBF)
- 513985 h
- Mean time between failures (MTBF)
- 513985 h h
- Internal memory
- 256 MB MB
- Flash memory
- 32 MB MB
Power
- Power source
- AC
- Voltage Required
- AC 120/230 V (50/60 Hz)
- AC input frequency
- 50 - 60 Hz
- Power consumption (max)
- 161.8 W
- AC input voltage
- 100 - 240 V V
- AC input frequency
- 50 - 60 Hz Hz
- Power consumption (max)
- 161.8 W W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 8
- Total Power over Ethernet (PoE) budget
- 130 W
- Total Power over Ethernet (PoE) budget
- 130 W W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 10 - 90%
- Heat dissipation
- 551.74 BTU/h
- Operating temperature (T-T)
- 0 - 50 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 90% %
- Storage relative humidity (H-H)
- 10 - 90% %
- Heat dissipation
- 551.74 BTU/h BTU/h
Weight & dimensions
- Width
- 267 mm
- Depth
- 162 mm
- Height
- 44 mm
- Weight
- 1.9 kg
- Width
- 267 mm mm
- Depth
- 162 mm mm
- Height
- 44 mm mm
- Weight
- 1.9 kg kg
Network
- Ethernet LAN data rates
- 100,1000 Mbit/s Mbit/s
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support
- No
- Port mirroring
- Yes
- Policy-based routing
- Yes
- Flow control support
- Yes
- Broadcast storm control
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Ethernet LAN data rates
- 100,1000 Mbit/s
- VLAN support
- Yes
- Virtual LAN features
- Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs
- 4000
Management features
- Switch type
- Managed
- Switch layer
- L2/L3/L4
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- Cloud-managed
- Yes
- ARP inspection
- Yes
- System event log
- Yes
- MIB support
- Y
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Combo SFP ports quantity
- 2
General
- Enclosure Type
- Desktop, wall-mountable
- Subtype
- Gigabit Ethernet
- Encryption Algorithm
- SSL
- Authentication Method
- RADIUS, TACACS+
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- Performance
- Switching capacity: 20 Gbps Forwarding rate: 15 Mpps
- Features
- Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, WFQ, ZyXEL iStacking Technology, STP support, RSTP support, MSTP support, DHCP snooping, QoS, RADIUS support, MLD snooping, fanless, DHCP relay, Port Security, SNMP trap, DHCP client, MIB, MVR, GVRP, dual firmware images, SPQ, NDP, port isolation, CoS, IGMP proxy, 802.1x authentication, Duplicated Address Detection, cloud managed, DSCP support, 1.5MB packet buffer, ErrDisable Recovery, IGMP filtering, IGMP throttling, Protocol-based VLANs support, CPU protection, IP source guard, ARP inspection, ICMP, VLAN filtering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, WRR, MAC based VLAN, VLAN Tagging, port-based VLAN, Unknown Storm Control, MRSTP, MAC freeze
Packaging content
- Cables included
- AC
Certificates
- Certification
- RoHS
