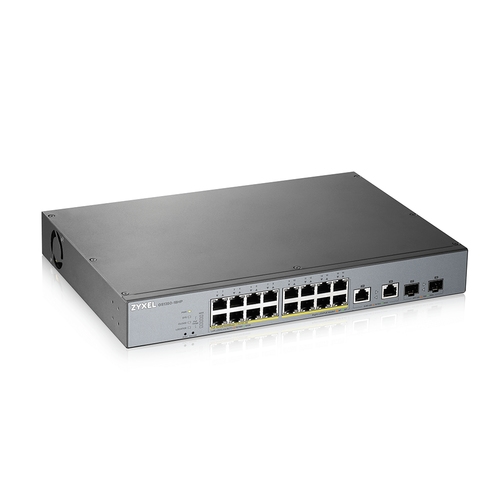

Zyxel GS1350-18HP - Switch - smart - 16 x 10/100/1000 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP - desktop, rack-mountable - PoE+ (250 W)
Switch
smart
16 x 10/100/1000 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP
desktop, rack-mountable
PoE+ (250 W)
Weight: 3.46 KG
- Managed L2 Web-based management
- Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 16
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 36 Gbit/s
- Rack mounting
- Power over Ethernet (PoE)
Similar Products
Overview
Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE. The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch "Restore" button on GS1350 Series helps effortless recovery from misconfigurations.
Specifications
Packaging data
- Package depth
- 338 mm mm
- Package height
- 80 mm mm
- Package weight
- 3.31 kg kg
- Package width
- 391 mm mm
- Package width
- 391 mm
- Package depth
- 338 mm
- Package height
- 80 mm
- Package weight
- 3.31 kg
Data transmission
- MAC address table
- 8000 entries entries
- Switching capacity
- 36 Gbit/s Gbit/s
- Forwarding rate
- 26.7 Mpps Mpps
- Packet buffer memory
- 0.525 MB MB
- MAC address table
- 8000 entries
- Switching capacity
- 36 Gbit/s
- Forwarding rate
- 26.7 Mpps
- Packet buffer memory
- 0.525 MB
Performance
- Noise level
- 39 dB dB
- Mean time between failures (MTBF)
- 1699692.18 h h
- Noise level
- 39 dB
- Firmware upgradeable
- Yes
- Mean time between failures (MTBF)
- 1699692.18 h
Power
- AC input voltage
- 100 - 240 V V
- AC input frequency
- 50 - 60 Hz Hz
- Power consumption (max)
- 300.9 W W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Power consumption (max)
- 300.9 W
Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget
- 250 W W
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 16
- Total Power over Ethernet (PoE) budget
- 250 W
Operational conditions
- Operating temperature (T-T)
- -20 - 50 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 5 - 95% %
- Storage relative humidity (H-H)
- 5 - 95% %
- Heat dissipation
- 1026.07 BTU/h BTU/h
- Operating temperature (T-T)
- -20 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Heat dissipation
- 1026.07 BTU/h
Weight & dimensions
- Width
- 330 mm mm
- Depth
- 230 mm mm
- Height
- 44 mm mm
- Weight
- 2.42 kg kg
- Width
- 330 mm
- Depth
- 230 mm
- Height
- 44 mm
- Weight
- 2.42 kg
Management features
- Switch type
- Managed
- Switch layer
- L2
- Web-based management
- Yes
- Configuring Location Settings (CLI)
- Yes
- System event log
- Yes
- MIB support
- RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Combo SFP ports quantity
- 2
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring
- Yes
- Flow control support
- Yes
- Broadcast storm control
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- VLAN support
- Yes
- Virtual LAN features
- MAC address-based VLAN, Port-based VLAN
- Number of VLANs
- 256
Optical fiber
- Fiber ethernet cabling technology
- 1000BASE-X
Security
- DHCP features
- DHCP client, DHCP relay, DHCP snooping
- IGMP snooping
- Yes
- IGMP proxy
- Yes
- Security algorithms
- SNMP, SNMPv3, SSH, SSL/TLS
- MAC address filtering
- Yes
- Loop protection
- Yes
- Queue scheduling algorithms
- SPQ, WFQ, Weighted Round Robin (WRR)
Multicast features
- Multicast support
- Yes
Design
- Rack mounting
- Yes
- Product colour
- Grey
- LED indicators
- Yes
- Electromagnetic compatibility
- CE, FCC, C-Tick, A; BSMI CNS13438
Packaging content
- Cables included
- AC
- Rack mount kit
- Yes
Certificates
- Certification
- LVD EN62368-1, BSMI CNS14336-1, RoHS
Logistics data
- Harmonized System (HS) code
- 85176990
