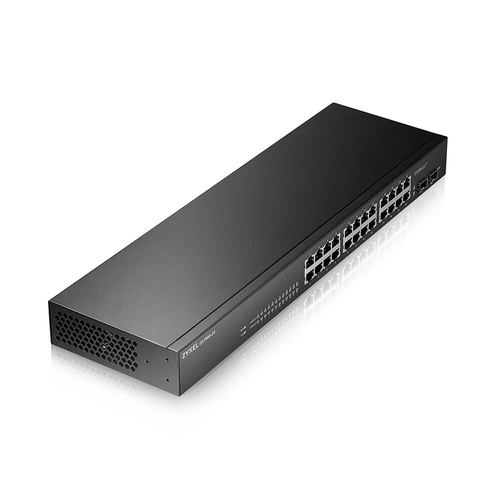

Zyxel GS1900-24
Switch
smart
24 x 10/100/1000 + 2 x Gigabit SFP (uplink)
desktop, rack-mountable
Weight: 2.68 KG
- 10/100/1000 Mbps GbE ports
- Easy browser-based switch management
- Quick and easy set up wizard
- Advanced network error prevention features (loop protection, dual images, storm control, DoS and SSL)
- Green Ethernet IEEE 802.3az support and intelligent ZyXEL green features
Similar Products
Overview
The ZyXEL GS1900 Series of 24-port GbE Smart Managed Switch with Gigabit speed and essential managing functions bring your business network more fexibility and connectivity. Providing GbE switches with power saving functions, fanless design and full IPv6 support ensure your network to be ready for future expansions. The complete GS1900 Series has been designed with useful features and advanced performances that empower your networks with speed and security as well as silent operation in your environments. The complete ZyXEL GS1900 Series has an essential portfolio of 24-port compact desktop and rackmount size with GbE connectivity. All models support multiple deployment methods to fulfill the needs for small offices and meeting room environments such as wall-, under table- or desktop-mounting and rackmount options. It's now quick and effortless to enjoy the high-speed business network applications without a hitch.
Specifications
Network
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Networking standards
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Port mirroring
- Yes
- Full duplex
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Spanning tree protocol
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- MAC address auto-learning supported
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Data transmission
- MAC address table
- 8000 entries entries
- Switching capacity
- 52 Gbit/s Gbit/s
- Forwarding rate
- 39 Mpps Mpps
- Packet buffer memory
- 0.525 MB MB
- MAC address table
- 8000 entries
- Switching capacity
- 52 Gbit/s
- Forwarding rate
- 39 Mpps
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Packet buffer memory
- 0.525 MB
Performance
- Mean time between failures (MTBF)
- 432.673 h h
- Mean time between failures (MTBF)
- 432.673 h
Power
- Voltage Required
- AC 100-240 V (50/60 Hz) V
- AC input frequency
- 50 - 60 Hz Hz
- Power consumption (max)
- 16 W W
- Power source
- AC
- Power supply included
- Yes
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Power consumption (max)
- 16 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C °C
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 95%
- Storage relative humidity (H-H)
- 10 - 95%
- Heat dissipation
- 55 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 95% %
- Storage relative humidity (H-H)
- 10 - 95% %
- Heat dissipation
- 55 BTU/h BTU/h
Management features
- Switch type
- Managed
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- System event log
- Yes
- MIB support
- RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- SFP module slots quantity
- 2
- Power connector
- AC-in jack
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Security algorithms
- 802.1x RADIUS
- MAC address filtering
- Yes
- Static port security
- Yes
- SSH/SSL support
- Yes
- Password protection
- Yes
- Authentication type
- RADIUS, TACACS+
Design
- Rack mounting
- Yes
- Stackable
- Yes
- Form factor
- 1U
- Product colour
- Black
- Reset button
- Yes
- LED indicators
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Weight & dimensions
- Width
- 440 mm
- Depth
- 131 mm
- Height
- 44 mm
- Weight
- 2.09 kg
- Width
- 440 mm mm
- Depth
- 131 mm mm
- Height
- 44 mm mm
- Weight
- 2.09 kg kg
Packaging content
- Cables included
- AC
- Rack mount kit
- Yes
Packaging data
- Package type
- Box
- Package width
- 561 mm
- Package depth
- 217 mm
- Package height
- 82 mm
- Package weight
- 2.85 kg
- Package width
- 561 mm mm
- Package depth
- 217 mm mm
- Package height
- 82 mm mm
- Package weight
- 2.85 kg kg
Certificates
- Certification
- EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant
Logistics data
- Harmonized System (HS) code
- 85176990
General
- Subtype
- Gigabit Ethernet
- Encryption Algorithm
- SSL
- Authentication Method
- RADIUS, TACACS+
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Status Indicators
- Power, system, link/activity
- Enclosure Type
- Desktop, rack-mountable
- Device Type
- Switch - 24 ports - smart
- Performance
- Switching capacity: 52 Gbps Forwarding performance: 39 Mbps
- Ports
- 24 x 10/100/1000 + 2 x Gigabit SFP (uplink)
- Features
- Flow control, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, WRR queuing, store and forward, IPv6 support, half duplex mode, full duplex mode, firmware upgradable, STP support, RSTP support, MSTP support, QoS, fanless, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, MIB, SPQ, CoS, tagged VLAN, 525KB packet buffer, Storm Control, dual image support, Voice VLAN, LLDP-MED, Guest VLAN, ingress rate limiting, egress rate limiting, NTP support
