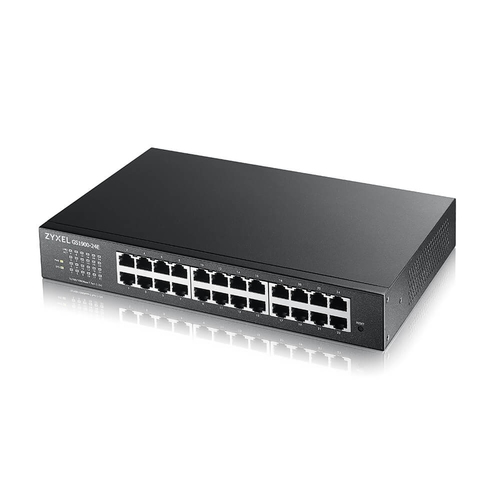

Zyxel GS1900 Series GS1900-24E
Switch
smart
24 x 10/100/1000
rack-mountable, wall-mountable
Weight: 2.28 KG
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 8000 entries Switching capacity: 48 Gbit/s
- 1U Rack mounting Stackable
Similar Products
Overview
The Zyxel GS1900-24E is a versatile switch designed to provide efficient networking solutions. With 24 1000Base-T interfaces, this Gigabit Ethernet switch ensures connectivity for a range of applications. Operating within a temperature range of 0 °C to 40 °C and with a humidity tolerance of 10% to 95% (non-condensing), it is built to perform in various environments. Its durable design includes features such as port security and DoS attack prevention, enhancing security and operational reliability in diverse network setups. The Zyxel GS1900-24E supports management protocols like SNMP and RMON, offering remote management capabilities. With a switching capacity of 48 Gbps and forwarding performance of 35.7 Mpps, it meets networking demands. Additionally, features such as VLAN management, IGMP snooping, and QoS ensure optimal traffic handling, making it suitable for different network infrastructures.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- System event log
- Yes
- MIB support
- RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9),RFC 1215 generic traps, RFC 1493 bridge, Zyxel private common MIB
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Power connector
- AC-in jack
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Port mirroring
- Yes
- Full duplex
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Spanning tree protocol
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- MAC address auto-learning supported
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Stacked VLAN, VLAN mapping
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
Data transmission
- MAC address table
- 8000 entries
- Switching capacity
- 48 Gbit/s
- Forwarding rate
- 35.7 Mpps
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Packet buffer memory
- 0.525 MB
- MAC address table
- 8000 entries entries
- Switching capacity
- 48 Gbit/s Gbit/s
- Forwarding rate
- 35.7 Mpps Mpps
- Packet buffer memory
- 0.525 MB MB
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Security algorithms
- 802.1x RADIUS
- MAC address filtering
- Yes
- Static port security
- Yes
- SSH/SSL support
- Yes
- Password protection
- Yes
- Authentication type
- RADIUS, TACACS+
Design
- Rack mounting
- Yes
- Stackable
- Yes
- Form factor
- 1U
- Product colour
- Black
- Reset button
- Yes
- LED indicators
- Yes
- Wall mountable
- Yes
Performance
- Mean time between failures (MTBF)
- 804.714 h
- Mean time between failures (MTBF)
- 804.714 h h
Power
- Power source
- AC
- Power supply included
- Yes
- Voltage Required
- AC 100-240 V (50/60 Hz)
- AC input frequency
- 50 - 60 Hz
- Power consumption (max)
- 15.1 W
- AC input voltage
- 100 - 240 V V
- AC input frequency
- 50 - 60 Hz Hz
- Power consumption (max)
- 15.1 W W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 95%
- Storage relative humidity (H-H)
- 10 - 95%
- Heat dissipation
- 51.49 BTU/h
- Operating temperature (T-T)
- 0 - 50 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 95% %
- Storage relative humidity (H-H)
- 10 - 95% %
- Heat dissipation
- 51.49 BTU/h BTU/h
Weight & dimensions
- Width
- 267 mm
- Depth
- 162 mm
- Height
- 42 mm
- Weight
- 1.56 kg
- Width
- 267 mm mm
- Depth
- 162 mm mm
- Height
- 42 mm mm
- Weight
- 1.56 kg kg
Packaging content
- Cables included
- AC
- Rack mount kit
- Yes
Packaging data
- Package type
- Box
- Package width
- 325 mm
- Package depth
- 223 mm
- Package height
- 71 mm
- Package weight
- 2.05 kg
- Package width
- 325 mm mm
- Package depth
- 223 mm mm
- Package height
- 71 mm mm
- Package weight
- 2.05 kg kg
Certificates
- Certification
- EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant
Logistics data
- Harmonized System (HS) code
- 85176990
General
- Subtype
- Gigabit Ethernet
- Encryption Algorithm
- SSL
- Authentication Method
- RADIUS, TACACS+
- Ports
- 24 x 10/100/1000
- Status Indicators
- Power, system, link/activity
- Enclosure Type
- Rack-mountable, wall-mountable
- Device Type
- Switch - 24 ports - smart
- Performance
- Switching capacity: 48 Gbps Forwarding performance: 35.7 Mpps
- Routing Protocol
- STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3
- Remote Management Protocol
- ICMP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9
- Features
- 525KB packet buffer, flow control, EEE, CoS, full duplex mode, half duplex mode, store and forward, auto-uplink (auto MDI/MDI-X), dual image support, VLAN Tagging, LACP support, Guest VLAN, Voice VLAN, Storm Control, SPQ, WRR, TOS Precedence, Port Security, VLAN management, CPU protection, DoS attack prevention, IGMP snooping, IPv6 support, NDP, Syslog support, LLDP-MED, firmware upgradable, DHCP client, port mirroring, MIB II
