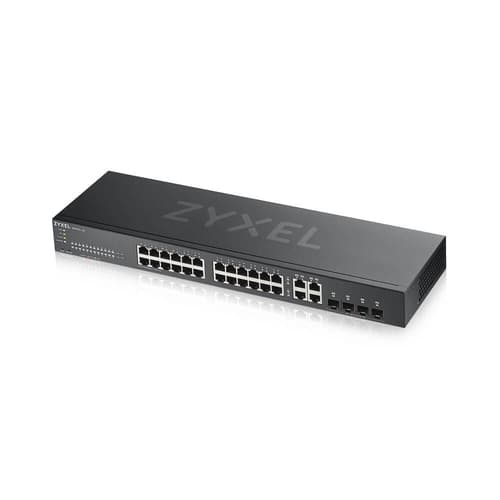

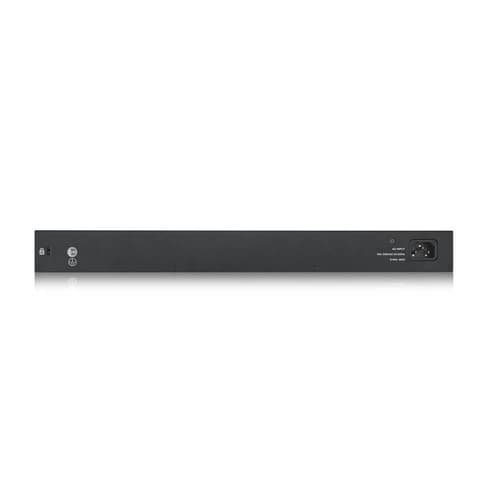

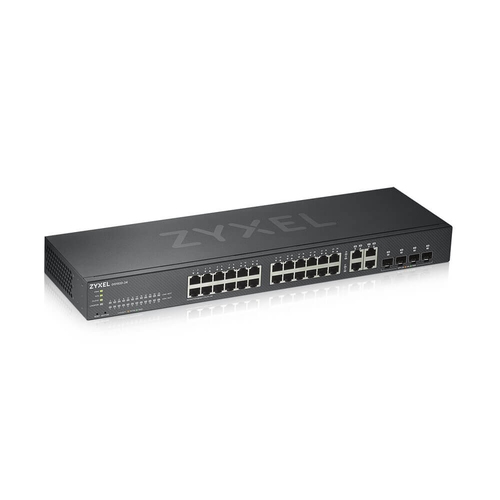

Zyxel GS1920-24v2
Manuf P/N: GS1920-24V2-GB0101F
APAXON#: 4911115
EAN: 4718937601868
Zyxel GS1920-24v2
Switch
smart
24 x 10/100/1000 + 4 x combo Gigabit SFP
rack-mountable
Weight: 3.00 KG
Switch
smart
24 x 10/100/1000 + 4 x combo Gigabit SFP
rack-mountable
Weight: 3.00 KG
- Managed
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 100BASE-TX, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 56 Gbit/s
- Inbuilt 'awareness' of other zyxel units in your network
- Web GUI interface for centralised management
- One-click remote factory resets and power cycling
UK Stock2
ConditionNew
Price £ 159.72
Price inc. VAT
£ 191.66
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
XMG-105 5 Ports 2,5G + 1 SFP+, 4 ports 70W total PoE++ Desktop MultiGig unmanaged Switch
Cheaper
—
—
—
—
Stock5
£84.00
Product Summary
The GS1920v2 series is ideal for SMB deployment in multiple scenarios, with its unique port combinations future proofing your network to ensure easy growth down the road.
Extended Specification
Data transmission
MAC address table
16000 entries entries
Switching capacity
56 Gbit/s Gbit/s
Forwarding rate
42 Mpps Mpps
Packet buffer memory
1.5 MB MB
MAC address table
16000 entries
Switching capacity
56 Gbit/s
Forwarding rate
42 Mpps
Packet buffer memory
1.5 MB
Performance
Internal memory
256 MB MB
Flash memory
32 MB MB
Noise level
0 dB dB
Mean time between failures (MTBF)
911301 h h
Internal memory
256 MB
Flash memory
32 MB
Noise level
0 dB
Mean time between failures (MTBF)
911301 h
Power
Power consumption (max)
22.5 W W
AC input voltage
100 - 240 V V
AC input frequency
50 - 60 Hz Hz
Voltage Required
AC 120/230 V (50/60 Hz)
AC input frequency
50 - 60 Hz
Power consumption (max)
22.5 W
Weight & dimensions
Depth
131 mm mm
Weight
2.1 kg kg
Width
441 mm mm
Height
44 mm mm
Width
441 mm
Depth
131 mm
Height
44 mm
Weight
2.1 kg
Operational conditions
Operating temperature (T-T)
0 - 50 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
10 - 95% %
Storage relative humidity (H-H)
10 - 95% %
Heat dissipation
76.73 BTU/h BTU/h
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Heat dissipation
76.73 BTU/h
Packaging data
Package width
558 mm mm
Package depth
214 mm mm
Package height
79 mm mm
Package weight
2.91 kg kg
Package width
558 mm
Package depth
214 mm
Package height
79 mm
Package weight
2.91 kg
Management features
Switch type
Managed
Quality of Service (QoS) support
Yes
ARP inspection
Yes
System event log
Yes
MIB support
RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Combo SFP ports quantity
4
Fiber optic connector
SFP
Network
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
100BASE-TX, 1000BASE-T
Flow control support
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Security
DHCP features
DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SNMP, SNMPv3
MAC address filtering
Yes
IP-MAC-Port binding
Yes
Authentication
Guest VLAN, Port-based authentication
Password protection
Yes
Authentication type
IEEE 802.1x, RADIUS
CPU defense
Yes
Queue scheduling algorithms
SPQ, WFQ, Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Design
Rack mounting
Yes
Product colour
Black
LED indicators
Yes
Safety
LVD, BSMI
Electromagnetic compatibility
FCC 15 A, CE A, BSMI EMC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Packaging content
Cables included
AC
Rack mount kit
Yes
Certificates
Certification
RoHS
Logistics data
Harmonized System (HS) code
85176990
General
Subtype
Gigabit Ethernet
Authentication Method
RADIUS, TACACS+
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Routing Protocol
IGMPv2, IGMP, IGMPv3
Enclosure Type
Rack-mountable 1U
Ports
24 x 10/100/1000 + 4 x combo Gigabit SFP
Device Type
Switch - 24 ports - smart
Capacity
QoS hardware queues per port: 8
Performance
Switching capacity: 56 Gbps Forwarding rate: 42 Mpps
Features
Flow control, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, firmware upgradable, WFQ, ZyXEL iStacking Technology, STP support, RSTP support, MSTP support, DHCP snooping, QoS, RADIUS support, MLD snooping, fanless, DHCP relay, Port Security, SNMP trap, DHCP client, MIB, MVR, GVRP, dual firmware images, SPQ, NDP, port isolation, CoS, IGMP proxy, 802.1x authentication, Duplicated Address Detection, cloud managed, DSCP support, 1.5MB packet buffer, ErrDisable Recovery, IGMP filtering, IGMP throttling, Protocol-based VLANs support, CPU protection, IP source guard, ARP inspection, ICMP, VLAN filtering, Loop Guard, Voice VLAN, Private VLAN, Guest VLAN, WRR, MAC based VLAN, VLAN Tagging, port-based VLAN, Unknown Storm Control, MRSTP, MAC freeze
Disclaimers
- Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
