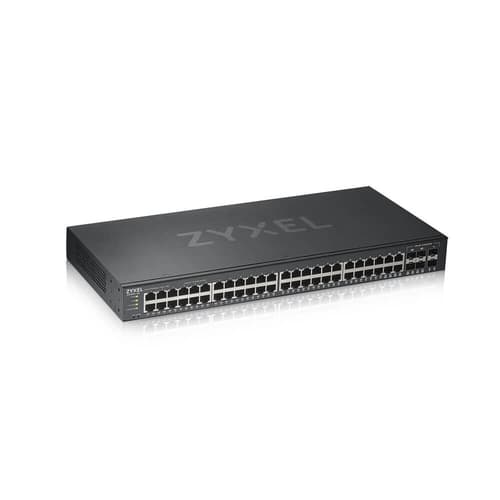

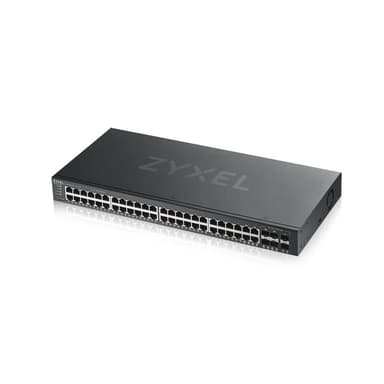

Zyxel GS1920-48v2 - Switch - smart - 48 x 10/100/1000 + 4 x combo Gigabit SFP + 2 x Gigabit SFP - rack-mountable
Manuf P/N: GS1920-48V2-GB0101F
APAXON#: 4921510
EAN: 4718937601905
Zyxel GS1920-48v2 - Switch - smart - 48 x 10/100/1000 + 4 x combo Gigabit SFP + 2 x Gigabit SFP - rack-mountable
- Managed
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 44
- 100BASE-TX, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 100 Gbit/s
- Access Control List (ACL)
- Rack mounting
Stock15
Price £275.58
Quantity
|
Similar Products
Product Summary
Zyxel GS1920-48V2 Managed Gigabit Ethernet (10/100/1000) Black
Extended Specification
Group 2944
Switch type
Managed
Quality of Service (QoS) support
Yes
ARP inspection
Yes
System event log
Yes
MIB support
RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819,2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293
Group 763
Basic switching RJ-45 Ethernet ports quantity
44
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Combo SFP ports quantity
4
SFP module slots quantity
2
Fiber optic connector
SFP
Group 1141
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
100BASE-TX, 1000BASE-T
Flow control support
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
Group 5713
Fiber ethernet cabling technology
1000BASE-X
Group 2484
MAC address table
16000 entries
Switching capacity
100 Gbit/s
Forwarding rate
74 Mpps
Packet buffer memory
1.5 MB
Group 2482
DHCP features
DHCP snooping, DHCP relay, DHCPv6 relay, DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SNMP, SNMPv3
MAC address filtering
Yes
IP-MAC-Port binding
Yes
Authentication
Guest VLAN, Port-based authentication
Password protection
Yes
Authentication type
IEEE 802.1x, RADIUS
CPU defense
Yes
Queue scheduling algorithms
SPQ, WFQ, Weighted Round Robin (WRR)
Group 27921
Multicast support
Yes
Group 10881
Rack mounting
Yes
Product colour
Black
LED indicators
Yes
Safety
LVD, BSMI
Electromagnetic compatibility
FCC 15 A, CE A, BSMI EMC
Group 10882
Internal memory
256 MB
Flash memory
32 MB
Noise level
26 dB
Mean time between failures (MTBF)
672235 h
Group 1142
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
36.9 W
Group 9999
Power over Ethernet (PoE)
No
Group 1143
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Heat dissipation
125.83 BTU/h
Group 1144
Width
440 mm
Depth
220 mm
Height
44.5 mm
Weight
2.8 kg
Group 49104
Cables included
AC
Rack mount kit
Yes
Group 2483
Package width
496 mm
Package depth
289 mm
Package height
90 mm
Package weight
3.97 kg
Group 41469
Certification
RoHS
Group 24990
Harmonized System (HS) code
85176990
