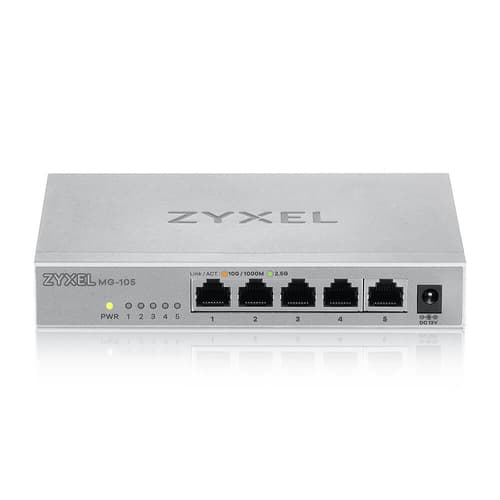

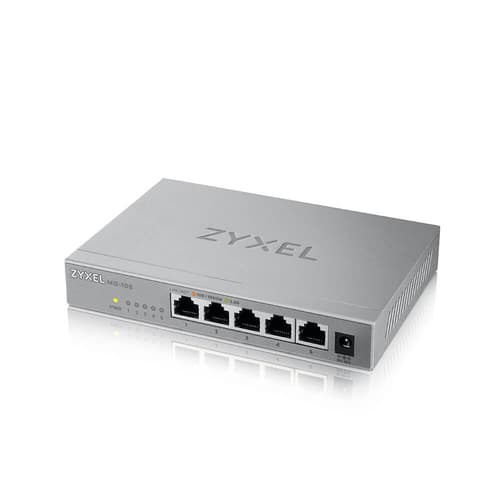

Zyxel XMG-100 Series XMG-105
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6

Zyxel XMG-100 Series XMG-105

Manuf P/N: XMG-105-ZZ0101F
APAXON#: 11464630
EAN: 4718937631117
Zyxel XMG-100 Series XMG-105
Switch
unmanaged
5 x 100/1000/2.5G + 1 x Gigabit SFP / 10 Gigabit SFP+
desktop, wall-mountable
Weight: 0.72 KG
  • 1 MB packet buffer size for improved performance
  • Operates in extreme temperatures from -20°C to 40°C
  • Fanless design for quiet operation
  • Supports 2.5GBase-T and 10Gbit LAN interfaces
  • Compliant with multiple standards for versatility
UK Stock6
ConditionNew
Price £ 63.31
Price inc. VAT
£ 75.97
Quantity
|

Sales & Technical Enquiries

Product Summary

The Zyxel XMG-105 switch is designed to meet diverse networking needs with an unmanaged setup that streamlines connections. With a packet buffer size of 1 MB, it ensures efficient data handling. The compact design allows for desktop or wall-mountable placement, making it a versatile choice for any environment. Operating within a temperature range from -20°C to 40°C, the Zyxel XMG-105 performs reliably in various conditions. Its fanless technology minimizes noise, making it suitable for office settings. Moreover, the switch operates effectively in high humidity ranging from 10% to 95%, ensuring connectivity in challenging environments. Features such as auto-uplink providing seamless connectivity and loop detection enhancing network reliability contribute to creating a stable networking experience.

Extended Specification

Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Network
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support
No
Data transmission
MAC address table
16000 entries
Switching capacity
25 Gbit/s
Forwarding rate
18.6 Mpps
Jumbo frames support
Yes
Packet buffer memory
12 MB
MAC address table
16000 entries entries
Switching capacity
25 Gbit/s Gbit/s
Forwarding rate
18.6 Mpps Mpps
Packet buffer memory
12 MB MB
Design
Product colour
Grey
Housing material
Metal
LED indicators
Activity, Link, Power
Power
Power source
AC
Power supply included
Yes
Voltage Required
AC 100-240 V (50/60 Hz)
AC input frequency
50/60 Hz
Power consumption (typical)
3.83 W
Power consumption (max)
9.34 W
AC input voltage
100 - 240 V V
AC input frequency
50/60 Hz Hz
Power consumption (typical)
3.83 W W
Power consumption (max)
9.34 W W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
10 - 90% %
Storage relative humidity (H-H)
5 - 90% %
Weight & dimensions
Width
160 mm
Depth
110 mm
Height
26 mm
Weight
460 g
Width
160 mm mm
Depth
110 mm mm
Height
26 mm mm
Weight
460 g g
Packaging content
Quick start guide
Yes
Packaging data
Package width
215 mm
Package depth
133 mm
Package height
79 mm
Package weight
919.6 g
Package width
215 mm mm
Package depth
133 mm mm
Package height
79 mm mm
Package weight
919.6 g g
Certificates
Certification
CE, EAC, FCC, BSMI Class B
General
Device Type
Switch - 5 ports
Enclosure Type
Desktop, wall-mountable
Subtype
2.5 Gigabit Ethernet
Capacity
Packet buffer size: 1 MB
Performance
Switching capacity: 45 Gbps Forwarding rate: 33.5 Mpps
Status Indicators
Power, port status
Features
Fanless, auto-uplink (auto MDI/MDI-X), loop detection, LED status indicators
Ports
5 x 100/1000/2.5G + 1 x Gigabit SFP / 10 Gigabit SFP+
Zyxel XMG-100 Series XMG-105

Disclaimers

  • Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
