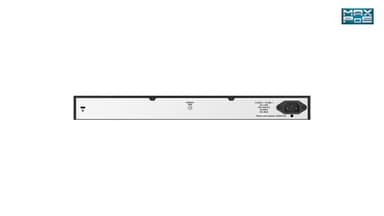

D-Link DGS 1026MP
D-Link DGS 1026MP
Switch
unmanaged
24 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP
rack-mountable, desktop
PoE (370 W)
Weight: 4.48 KG
Switch
unmanaged
24 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP
rack-mountable, desktop
PoE (370 W)
Weight: 4.48 KG
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 8192 entries Switching capacity: 52 Gbit/s
- Rack mounting
- AC Power supply included Power over Ethernet (PoE)
Similar Products
Overview
The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
Specifications
Management features
- Switch type
- Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity
- 2
Network
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support
- No
- Auto MDI/MDI-X
- Yes
Data transmission
- MAC address table
- 8192 entries
- Switching capacity
- 52 Gbit/s
- Throughput
- 38.69 Mpps
- Forwarding rate
- 38.69 Mpps
- Store-and-forward
- Yes
- Packet buffer memory
- 0.512 MB
- MAC address table
- 8192 entries entries
- Switching capacity
- 52 Gbit/s Gbit/s
- Throughput
- 38.69 Mpps Mpps
- Forwarding rate
- 38.69 Mpps Mpps
- Packet buffer memory
- 0.512 MB MB
Design
- Rack mounting
- Yes
- Product colour
- Black, Grey
- LED indicators
- Activity, Link, PoE, Power, Power fail, Speed
- Number of fans
- 2 fan(s)
- Safety
- UL/CSA 60950-1, EN 60950-1, IEC 60950-1
- Number of fans
- 2 fan(s) fan(s)
Performance
- Buffer size
- 512 KB
- Mean time between failures (MTBF)
- 205975 h
- Buffer size
- 512 KB KB
- Mean time between failures (MTBF)
- 205975 h h
Power
- Power source
- AC
- Power supply included
- Yes
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Power consumption (max)
- 444.1 W
- AC input voltage
- 100 - 240 V V
- AC input frequency
- 50/60 Hz Hz
- Power consumption (max)
- 444.1 W W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 370 W
- Total Power over Ethernet (PoE) budget
- 370 W W
- Power over Ethernet (PoE) power per port
- 30 W W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Heat dissipation
- 1515 BTU/h
- Storage relative humidity (H-H)
- 5 - 90% %
- Heat dissipation
- 1515 BTU/h BTU/h
- Operating temperature (T-T)
- 0 - 50 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 90% %
Weight & dimensions
- Width
- 440 mm
- Depth
- 250.4 mm
- Height
- 44 mm
- Weight
- 3.1 kg
- Width
- 440 mm mm
- Depth
- 250.4 mm mm
- Height
- 44 mm mm
- Weight
- 3.1 kg kg
Packaging data
- Package width
- 388 mm
- Package depth
- 506 mm
- Package height
- 90 mm
- Package weight
- 3.7 kg
- Package depth
- 506 mm mm
- Package height
- 90 mm mm
- Package weight
- 3.7 kg kg
- Package width
- 388 mm mm
Technical details
- Shipping (inner) case height
- 41 cm
- Shipping (inner) case width
- 20.5 cm
- Shipping (inner) case length
- 52 cm
- Shipping (inner) case net weight
- 8.39 kg
- Products per shipping (inner) case
- 2 pc(s)
- Pallet gross weight (air)
- 281.8 kg
- Master (outer) cases per pallet (air)
- 30 pc(s)
- Products per pallet (air)
- 60 pc(s)
- Pallet gross length
- 110 cm
- Pallet gross width
- 120 cm
- Pallet height (air)
- 136.5 cm
- Pallet gross weight (sea)
- 369.8 kg
- Master (outer) cases per pallet (sea)
- 40 pc(s)
- Products per pallet (sea)
- 80 pc(s)
- Pallet height (sea)
- 177.5 cm
- Shipping (inner) case gross weight
- 8.79 kg
- Shipping (inner) case height
- 41 cm cm
- Shipping (inner) case width
- 20.5 cm cm
- Shipping (inner) case length
- 52 cm cm
- Shipping (inner) case net weight
- 8.39 kg kg
- Products per shipping (inner) case
- 2 pc(s) pc(s)
- Pallet gross weight (air)
- 281.8 kg kg
- Master (outer) cases per pallet (air)
- 30 pc(s) pc(s)
- Products per pallet (air)
- 60 pc(s) pc(s)
- Pallet gross length
- 110 cm cm
- Pallet gross width
- 120 cm cm
- Pallet height (air)
- 136.5 cm cm
- Pallet gross weight (sea)
- 369.8 kg kg
- Master (outer) cases per pallet (sea)
- 40 pc(s) pc(s)
- Products per pallet (sea)
- 80 pc(s) pc(s)
- Pallet height (sea)
- 177.5 cm cm
- Shipping (inner) case gross weight
- 8.79 kg kg
Certificates
- Compliance certificates
- BSMI, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI
- Certification
- FCC Class A CE CCC RoHS VCCI BSMI RCM
Logistics data
- Harmonized System (HS) code
- 85176990
General
- Subtype
- Gigabit Ethernet
- MAC Address Table Size
- 8K entries
- PoE Budget
- 370 W
- Power Over Ethernet (PoE)
- PoE
- Device Type
- Switch - 26 ports - unmanaged
- Ports
- 24 x 10/100/1000 (PoE) + 2 x combo Gigabit SFP
- Performance
- Switching capacity: 52 Gbps Forwarding performance (64-byte packet size): 38.69 Mpps
- Enclosure Type
- Rack-mountable, desktop 1U
- Features
- Flow control, Energy Efficient Ethernet, auto-uplink (auto MDI/MDI-X), store and forward
- Status Indicators
- Fail, link/activity, PoE, port transmission speed, power
