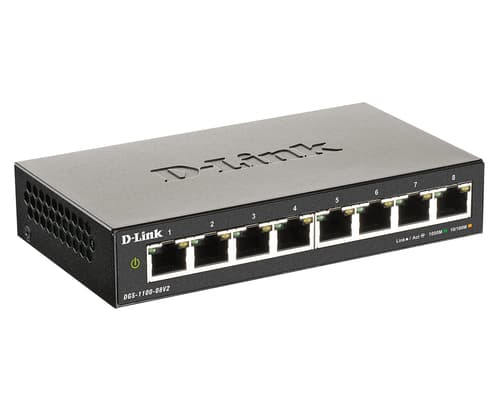

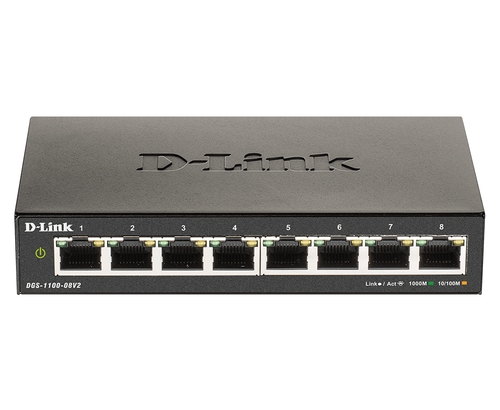

D-Link DGS 1100-08V2

Name: D-Link DGS 1100-08V2
Brand: D-Link
SKU: DGS-1100-08V2/B
Price: 36.08 GBP
Availability: InStock

Manuf P/N: DGS-1100-08V2/B

APAXON#: 6277996

EAN: 790069453304

D-Link DGS 1100-08V2
Switch
smart
8 x 10/100/1000
desktop
AC 100/240 V
Weight: 0.72 KG

Managed L2 Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 8
MAC address table: 4000 entries Switching capacity: 16 Gbit/s
Free centralised management with Nuclias Connect
Simple Layer 2 Management
Web-based User Interface
PoE options up to 370W power budget

UK Stock3

ConditionNew

Price £ 36.08

Price inc. VAT

£ 43.30

Quantity

Notify me when available.

Sales & Technical Enquiries

Phone: 0161 464 9941Email: sales@apaxon.co.uk

Product Summary

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Extended Specification

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

Power connector

DC-in jack

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

10G support

Port mirroring

Yes

Full duplex

Yes

Half duplex

Yes

Flow control support

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Head-of-line (HOL) blocking

Yes

Auto-negotiation

Yes

VLAN support

Yes

Virtual LAN features

Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN

Number of VLANs

4094

Copper ethernet cabling technology

1000BASE-T

Data transmission

MAC address table

4000 entries

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

Number of queues

Jumbo frames support

Yes

Jumbo frames

9216

Packet buffer memory

1.5 MB

MAC address table

4000 entries entries

Switching capacity

16 Gbit/s Gbit/s

Forwarding rate

11.9 Mpps Mpps

Packet buffer memory

1.5 MB MB

Security

IGMP snooping

Yes

IGMP entries

128

Static port security

Yes

Queue scheduling algorithms

SP, Weighted Round Robin (WRR)

Design

Rack mounting

Product colour

Black

Reset button

Yes

Number of fans

0 fan(s)

Number of fans

0 fan(s) fan(s)

Performance

Noise level

0 dB

Fanless

Yes

Mean time between failures (MTBF)

1456992 h

Mean time between failures (MTBF)

1456992 h h

Noise level

0 dB dB

Power

Power source

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

DC input voltage

5 V

Input current

1 A

Power consumption (max)

4.94 W

Voltage Required

AC 100/240 V (50/60 Hz) V

AC input frequency

50/60 Hz Hz

DC input voltage

5 V V

Input current

1 A A

Power consumption (max)

4.94 W W

Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 2000 m

Heat dissipation

16.85 BTU/h

Operating temperature (T-T)

0 - 40 °C °C

Storage temperature (T-T)

-40 - 70 °C °C

Operating relative humidity (H-H)

0 - 90% %

Storage relative humidity (H-H)

0 - 95% %

Operating altitude

0 - 2000 m m

Heat dissipation

16.85 BTU/h BTU/h

Weight & dimensions

Width

145 mm

Depth

82 mm

Height

28 mm

Weight

340 g

Width

145 mm mm

Depth

82 mm mm

Height

28 mm mm

Weight

340 g g

Certificates

Compliance certificates

BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI, cUL

Logistics data

Harmonized System (HS) code

85176990

General

Enclosure Type

Desktop

Subtype

Gigabit Ethernet

Encryption Algorithm

SSL

Routing Protocol

IGMPv2, IGMP, IGMPv3

Ports

8 x 10/100/1000

Device Type

Switch - 8 ports - smart

Performance

Switching capacity: 16 Gbps Forwarding performance: 11.9 Mpps

Status Indicators

Power, status, link/activity/speed

Capacity

VLAN groups: 128 VLAN IDs: 4094 IGMP groups: 128

Remote Management Protocol

SNMP 2, ICMP

Features

Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DSCP support, 1.5MB packet buffer, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN
