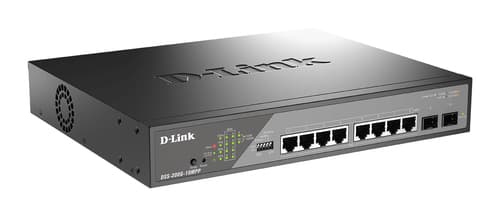

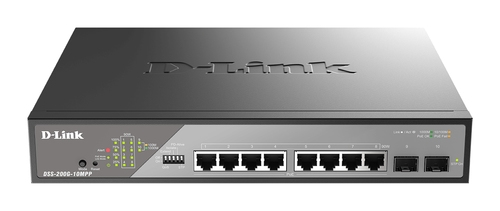

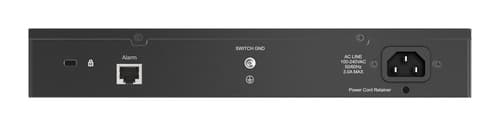

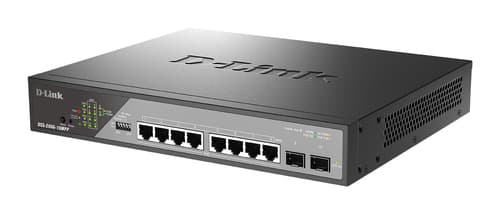

D-Link DSS 200G-10MPP
Manuf P/N: DSS-200G-10MPP/B
APAXON#: 8641817
EAN: 790069470653
D-Link DSS 200G-10MPP
Switch
Managed
8 x 10/100/1000 (PoE++) + 2 x Gigabit SFP
rack-mountable
PoE++ (242 W)
Weight: 3.12 KG
Switch
Managed
8 x 10/100/1000 (PoE++) + 2 x Gigabit SFP
rack-mountable
PoE++ (242 W)
Weight: 3.12 KG
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 8000 entries Switching capacity: 20 Gbit/s Controllable multicast
- Smart Fan design
- Surveillance traffic optimization
- Auto-detect ONVIF devices
- Built-in SNMP MIB
UK Stock5
ConditionNew
Price £ 230.75
Price inc. VAT
£ 276.90
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Product Summary
The DSS-200G series is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses. Support for high-powered Pan Tilt Zoom (PTZ) cameras, automatic Surveillance VLAN, and 6 kV surge protection make the DSS-200G series ideal for IP surveillance deployments. A redesigned interface, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your surveillance requirements.
Extended Specification
Data transmission
Packet buffer memory
4.1 MB MB
MAC address table
8000 entries entries
Switching capacity
20 Gbit/s Gbit/s
Forwarding rate
14.88 Mpps Mpps
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
Number of queues
4
Jumbo frames support
Yes
Jumbo frames
10240
Packet buffer memory
4.1 MB
Network
Ethernet LAN data rates
1000 Mbit/s Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Port mirroring
Yes
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
1000 Mbit/s
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Voice VLAN
Number of VLANs
4094
Operational conditions
Operating relative humidity (H-H)
0 - 95% %
Operating temperature (T-T)
-5 - 50 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Storage relative humidity (H-H)
0 - 95% %
Heat dissipation
87 BTU/h BTU/h
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
87 BTU/h
Design
Number of fans
1 fan(s) fan(s)
Form factor
1U
Product colour
Grey
Reset button
Yes
LED indicators
Activity, Alarm, Link, Power, Speed
Number of fans
1 fan(s)
Performance
Internal memory
128 MB MB
Flash memory
32 MB MB
Noise level
50.6 dB dB
Mean time between failures (MTBF)
508112 h h
Memory type
DDR3-SDRAM
Internal memory
128 MB
Flash memory
32 MB
Noise level
50.6 dB
Fanless
No
Mean time between failures (MTBF)
508112 h
Power
Voltage Required
AC 100-240 V (50/60 Hz) V
AC input frequency
50/60 Hz Hz
Input current
3 A A
Input voltage
100 - 240 V V
Power consumption (max)
267.5 W W
Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
3 A
Input voltage
100 - 240 V
Power consumption (max)
267.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
90 W W
Total Power over Ethernet (PoE) budget
242 W W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) power per port
90 W
Total Power over Ethernet (PoE) budget
242 W
Weight & dimensions
Width
280 mm mm
Depth
230 mm mm
Height
44 mm mm
Weight
2.05 kg kg
Width
280 mm
Depth
230 mm
Height
44 mm
Weight
2.05 kg
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Traffic classification
Yes
MIB support
• RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention • RFC2233 Interface Group MIB • RFC2665 Ether-like MIB • RFC4363 IEEE 802.1p MIB • ZoneDefense MIB • Private MIB • RFC951 BootP client • RFC1542 BootP/DHCP client • RFC2236 IGMP Snooping
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
2
Security
IGMP snooping
Yes
SSH/SSL support
Yes
Password protection
Yes
Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Multicast features
Controllable multicast
Sustainability
Sustainability certificates
UL ECOLOGO
Sustainability compliance
Yes
Certificates
Compliance certificates
BSMI, CB, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), cUL
General
Subtype
Gigabit Ethernet
Encryption Algorithm
SSL
Enclosure Type
Rack-mountable 1U
Device Type
Switch - 8 ports - Managed
Performance
Switching capacity: 20 Gbps Forwarding rate: 14.88 Mbps
Ports
8 x 10/100/1000 (PoE++) + 2 x Gigabit SFP
Routing Protocol
IGMPv2, IGMP, RSTP, STP
Capacity
Packet buffer size: 4.1 Mbit VLAN groups: 128 IGMP snooping groups: 64 Link aggregation groups: 8 Link aggregation ports: 8 Queues per port: 4
Remote Management Protocol
SNMP, DHCP, IPv4, IPv6, RSTP, MIB
Status Indicators
Power, alarm, link/activity/speed
Features
Flow control, auto-negotiation, BOOTP support, IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, QoS, static IP mode, Cable Diagnostics Function, LLDP support, MIB, built-in DIP switch, tagged VLAN, ONVIF support, ERPS, Storm Control, 6KV Surge protection, MIB II, rate limit, 1 fan, Voice VLAN, Private MIB, WRR, loopback detection, port-based VLAN, Unknown Storm Control, isolate mode, Asymmetric VLAN, MDI, MDI-X, Smart Fan, Auto Surveillance VLAN, PD-Alive
Power Over Ethernet (PoE)
PoE++
Disclaimers
- Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
