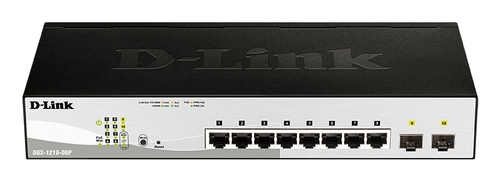

D-Link Web Smart DGS-1210-08P
Manuf P/N: DGS-1210-08P
APAXON#: 2801775
EAN: 790069391958
PoE Switch 8xGbit 2xCombo
Weight: 2.12 KG
Weight: 2.12 KG
- Managed L2/L3 Web-based management SNMP, RMON
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- 10G support 10BASE-T, 100BASE-T, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 20 Gbit/s
UK Stock17
ConditionNew
Price £ 100.69
Price inc. VAT
£ 120.83
Quantity
|
Sales & Technical Enquiries
Phone: 0161 464 9941Email: sales@apaxon.co.uk
Similar Products
Product Summary
The DGS-1210 Series Gigabit Smart Managed Switches with Fibre Uplinks is the latest generation of D-Link Smart Managed Switches featuring high port density and optional PoE support. With D-Link Green 3.0 technology, the series offers a high level of energy saving and efficiency, as well as compliance with IEEE 802.3az Energy Efficient Ethernet standard.
Extended Specification
Technical details
Shipping (inner) case width
34.6 cm
Shipping (inner) case height
31.7 cm
Shipping (inner) case length
38.2 cm
Shipping (inner) case net weight
10.8 kg
Products per shipping (inner) case
5 pc(s)
Pallet gross weight (air)
436.1 kg
Master (outer) cases per pallet (air)
36 pc(s)
Products per pallet (air)
180 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
140.3 cm
Pallet gross weight (sea)
644.9 kg
Master (outer) cases per pallet (sea)
54 pc(s)
Products per pallet (sea)
270 pc(s)
Pallet height (sea)
2.04 m
Shipping (inner) case gross weight
11.6 kg
Data transmission
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
Security
DHCP features
DHCP server, DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
MAC address filtering
Yes
Static port security
Yes
SSH/SSL support
Yes
Multicast features
Multicast support
Yes
Protocols
Management protocols
SNMP, RMON
Data link protocols
IP
Design
Rack mounting
Yes
Stackable
Yes
Product colour
Black
LED indicators
Yes
Cable management
Yes
Safety
cUL, LVD
Performance
Mean time between failures (MTBF)
729258 h
Power
Power source
DC
Input voltage
54 V
Power consumption (typical)
2.5 W
Power consumption (max)
81.9 W
Voltage Required
AC 120/230 V (50/60 Hz)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
65 W
Other features
Packet transfer speed
14.9 Mp/s
Power LED
Yes
Operational conditions
Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
279.59 BTU/h
Weight & dimensions
Width
280 mm
Depth
126 mm
Height
44 mm
Weight
950 g
Packaging data
Package width
288 mm
Package depth
331 mm
Package height
72 mm
Package weight
2.17 kg
Logistics data
Harmonized System (HS) code
85176990
Certificates
Certification
CE Class A
General
Subtype
Gigabit Ethernet
Device Type
Switch - 8 ports - Managed
Status Indicators
Port transmission speed, power, PoE, link/activity
Remote Management Protocol
SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Ports
8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
Enclosure Type
Desktop, rack-mountable 1U
Performance
Switching capacity: 20 Gbps, Forwarding performance: 14.9 Mpps
Features
Flow control, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, ACL support, QoS, Safeguard Engine, reset button, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, LLDP support, LACP, DHCP client, Energy Efficient Ethernet
Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
MIB support
1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB, Power-Ethernet MIB, LLDP MIB, D-Link ZoneDefense MIB1
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
SFP module slots quantity
2
Network
Networking standards
IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af
10G support
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Disclaimers
- Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
